GDF-600 China’s Multi-Payload Hypersonic Glide Platform

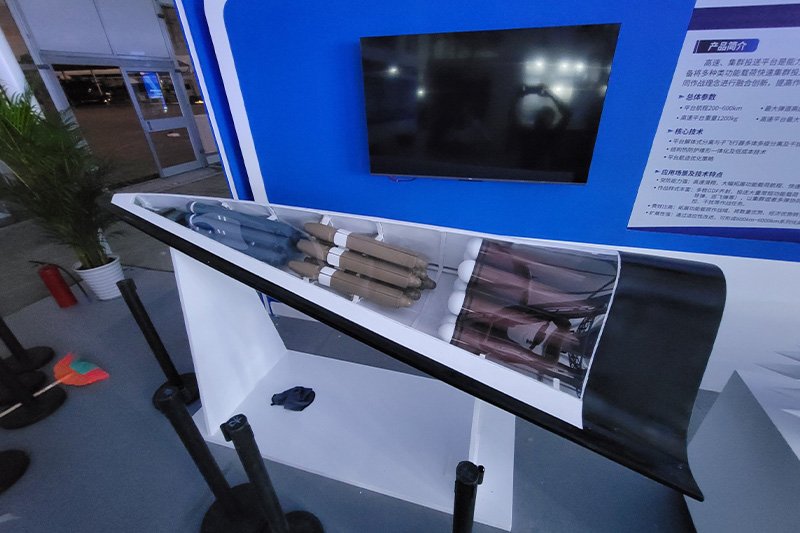

In a groundbreaking development for global aerospace technology, the GDF-600 hypersonic high-glide vehicle (HGV) with advanced sub-munitions capabilities is set to make its historic debut at the Zhuhai Airshow 2024. The GDF-600 high-speed platform has the ability to quickly deliver a variety of functional payloads to the target area.

This equipment innovatively integrates high-speed technology and cluster collaborative combat concepts to improve the combat range and suddenness of conventional weapons and form a new quality combat capability of conventional weapons.

Overall Parameters

• Platform Range: 200-600 km

• Maximum Ballistic Altitude: 40 km

• Take-off Weight: 5,000 kg

• High-speed Platform Weight: 1,200 kg

• Maximum Flight Mach number: Mach 7

Core Technologies

• Platform Disintegration Separation and Sub-aircraft Multi-body Multi-stage Separation and Interference Suppression Technology

• Structural Thermal Protection Dimension Integration and Low-cost Technology

• Flight Control System Simplification and Optimization Technology

• Systematic Modular Rapid Design and Development Technology for Products

• Platform and Multi-type Sub-aircraft Adaptation Rules, Sub-aircraft Cluster Loading Modular Technology

• Platform Track Optimization Strategy

Application Scenarios and Technical Features

The GDF-600 demonstrates exceptional penetration capabilities through its high-speed gliding technology, significantly extending conventional weapons’ range while ensuring rapid target acquisition and penetration effectiveness. This advancement represents a new paradigm in conventional weapon systems.

Rich Combat Styles

The platform excels in delivering multiple GDF salvos, capable of deploying a wide array of conventional functional payloads including drones, aerial bombs, subsonic missiles, supersonic missiles, and cruise missiles. These can be coordinated in cluster or multi-missile configurations, enabling diverse mission profiles from strike operations to reconnaissance, perception, communication, blockade, and interference.

High Cost-effectiveness

By expanding the combat domain of conventional weapons, the GDF-600 effectively transforms numerical and economic advantages into superior battlefield firepower. This approach maximizes resource utilization while maintaining operational effectiveness.

Strong Scalability

Through adaptability improvements, the platform can support the development of high-speed cluster strike platforms with ranges from 600 km to 6,000 km, demonstrating remarkable potential for future enhancements.

Key Specifications of a Wide Variety of Weapon Carrying

/* Table Styles */ table { width: 100%; border-collapse: collapse; font-family: Arial, sans-serif; color: #333; margin-bottom: 30px; background-color: #fff; box-shadow: 0 2px 5px rgba(0,0,0,0.1); }th, td { padding: 16px 20px; text-align: left; border-bottom: 1px solid #f0f0f0; }th { background-color: #f7f7f7; font-weight: bold; text-transform: uppercase; font-size: 14px; letter-spacing: 0.5px; }td { font-size: 15px; line-height: 1.5; }/* Hover Animation */ tr:hover { background-color: #f9f9f9; transform: translateY(-2px); box-shadow: 0 4px 6px rgba(0,0,0,0.05); transition: all 0.3s ease-in-out; }/* Weapon Type Colors */ .supersonic { color: #FF6B6B; font-weight: bold; }.subsonic { color: #FFA500; font-weight: bold; }.loitering { color: #9B59B6; font-weight: bold; }.aerial-bomb { color: #3498DB; font-weight: bold; }.drone { color: #2ECC71; font-weight: bold; }

Weapon Type	Combat Radius	Speed	Flight Altitude
Supersonic Missile	100-500 km	2,400-6,000 km/h	5-25 km
Subsonic Missile	50-100 km	730-1,030 km/h	within 3 km
Loitering Missile	10-80 km	360-600 km/h	within 3 km
Aerial Bomb	10-70 km	Landing Speed: 200-500 km/h	1-10 km
Drone	2-15 km	360-730 km/h	3 km

Market Impact and Export Considerations

The unveiling at Zhuhai Airshow 2024 marks a significant milestone in hypersonic technology accessibility. While the full-range 600-kilometer version may face international treaty restrictions, a modified 300-kilometer variant is anticipated for export markets. This development represents China’s success in making hypersonic technology more cost-effective and accessible.

Technical Innovation Assessment

The GDF-600’s most significant innovation lies not only in its impressive speed and range but in its diversified combat capabilities. The ability to carry and deploy various warheads, including missiles, cruise missiles, bombs, and drones, after reaching target proximity, creates a formidable combination of penetration capability and multi-target engagement potential.

Strategic Implications

The platform’s ability to release multiple types of munitions near target areas while maintaining hypersonic speeds presents unique advantages in modern warfare scenarios. This capability not only complicates interception efforts but also enables simultaneous engagement of multiple targets, representing a significant advancement in conventional weapons technology.

Read this: China’s CH-9 Combat Drone with Ballistic Missile Capabilities

Future Development Potential

The modular design and scalable architecture of the GDF-600 suggest significant potential for future enhancements. The platform’s ability to adapt to various mission profiles and payload configurations positions it as a foundation for future hypersonic weapon system development.

The unveiling of the GDF-600 at Zhuhai Airshow 2024 represents a watershed moment in military aerospace technology. While other nations continue developing single-warhead hypersonic missiles, this platform demonstrates advanced capabilities in multi-warhead separation and deployment. Its combination of speed, versatility, and cost-effectiveness establishes new benchmarks in hypersonic weapon system development.
